99% High-Purity Alumina Saggar for Muffle Furnace

$ 39.92

10 items sold
Category:

Related products

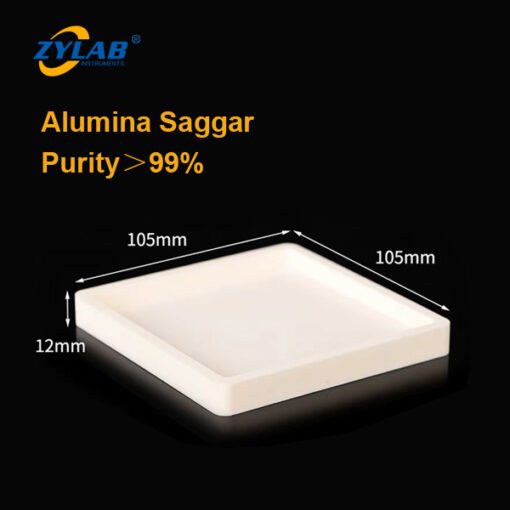

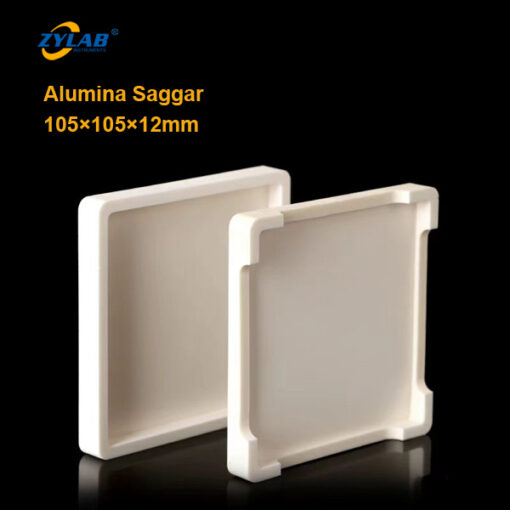

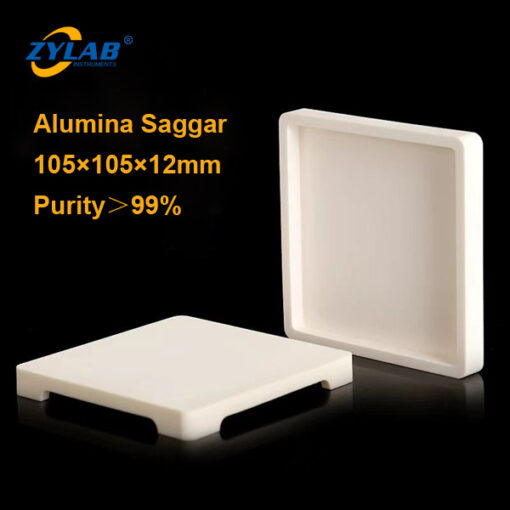

    99% High-Purity Alumina Saggar What is a saggar made of? Alumina saggar for muffle furnace is a specialized container designed for high-temperature applications, particularly in muffle furnaces. Made from 99% high-purity alumina, this saggar offers superior thermal stability, excellent resistance to chemical corrosion, and high durability, making it ideal for use in demanding furnace environments. Dimensions: 105×105×12mm Wall Thickness: 5mm Alumina Purity: >99% Maximum temperature resistance: 1750°C Continuous operating temperature: ≤1600°C Saggars are available in flat-mouth and notched designs. Multiple saggars can be stacked and used together. We offer customized services according to your requirements! If you need more detailed information, please contact us immediately. We offer free quotes on all products! How to Use Alumina Saggar? 1. Before the first use, preheat the saggar in an oven at around 105°C for 120 minutes to remove moisture. 2. Do not directly heat the saggar with gasoline blowtorch, acetylene torch, or alcohol burner to avoid uneven heating and cracking of the product. 3. The heating or cooling rate should not be too fast. The temperature change below 1200°C should be <5°C/minute, and above 1200°C should be ≤4°C/minute. 4. The distance between the product and the heating element (such as carbon tube, silicon molybdenum rod, or heating wire, etc.) should be >2cm. 5. The bottom of saggars should preferably not directly contact the bottom of the furnace. It is recommended to use alumina foot pads or other heat-resistant materials to lift the saggar, forming air convection to prolong the service life of the product. Alumina Saggar Related Products:  Square Alumina Crucibles for Muffle Furnace Square Crucible with Lid for Muffle Furnace Alumina Kiln Furniture for Muffle Furnace Get In TouchFill out the form below — free quote and professional suggestion will be sent for reference very soon! Name Email* Message Send
